REP-TAT-P-2434-01 Manual emergency release of parking lock (8-speed, AISIN GA8F22AW)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Refer to REMOVING INTAKE PORT
Refer to REMOVING INTAKE SILENCER HOUSING

NOTE: In case of a power interruption (for example by a discharged battery or an electrical fault), the parking lock must be unlocked manually, otherwise the wheels will be blocked and the vehicle cannot move.

NOTE: Secure the vehicle from rolling away, for example with chocks.
Press the brakes in case of manually unlocking the parking lock. Otherwise there is a risk that the vehicle may roll away while manually unlocking the parking lock.

Vehicles with lever:

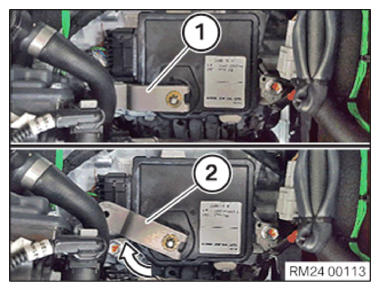

Turn the selector shaft with the lever from park (1) to the stop position in neutral (2) .

The parking lock is unlocked.

Courtesy of BMW OF NORTH AMERICA, INC.

Vehicles without lever:

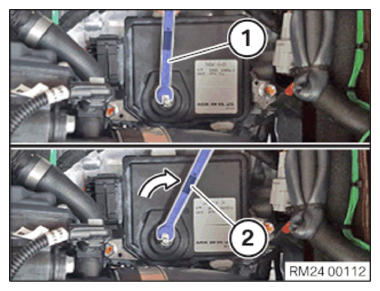

Using a wrench with key range 6, turn the selector shaft from park (1) to the stop position in neutral (2) .

The parking lock is unlocked.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work:

Refer to INSTALLING INTAKE SILENCER HOUSING .
Refer to INSTALLING INTAKE PORT
