REP-TAT-P-2421-01 Removing the right radial shaft seal on the differential (8-speed, AISIN GA8F22AW)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Refer to REMOVING THE FRONT LEFT AND RIGHT WHEELS
- Refer to REMOVING RIGHT OUTPUT SHAFT

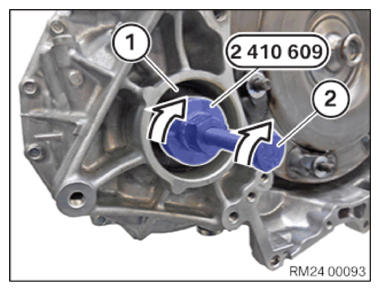

- Screw special tool 2 410 609 into the radial shaft seal (1).
- Turn screw (2) on special tool 2 410 609 until radial shaft seal (1) is pulled out.
