Replacing right radial shaft seal on differential (6-speed, AISIN GA6F21AW)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

23 0 490
2 358 465

Necessary preliminary work:

Remove RIGHT OUTPUT SHAFT .
Remove INTAKE SILENCER HOUSING .

Removal:

Drive a hole into radial shaft seal using a center punch.

IMPORTANT: Do not use a drill as shavings may result in transmission malfunction.

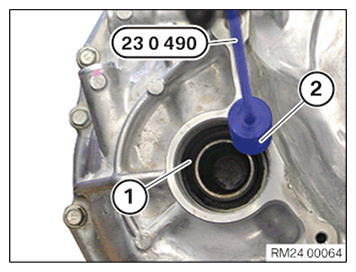

Screw special tool 23 0 490 into radial shaft seal.

Drive out radial shaft seal (1) with impact weight (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation note:

Coat sealing lips of new radial shaft seal with clean transmission oil.

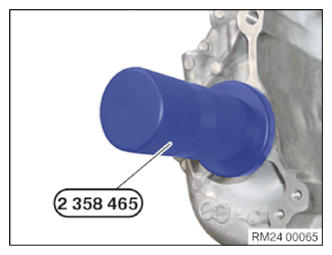

Drive shaft seal firmly home with special tool 2 358 465.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install RIGHT OUTPUT SHAFT .
Check TRANSMISSION OIL LEVEL .
Install INTAKE SILENCER HOUSING .
