Replacing radial shaft seal for drive shaft (6-speed, AISIN GA6F21AW)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 23 0 490
- 2 358 818
Necessary preliminary work:
- Remove TRANSMISSION .
- Remove TORQUE CONVERTER .
Removal:

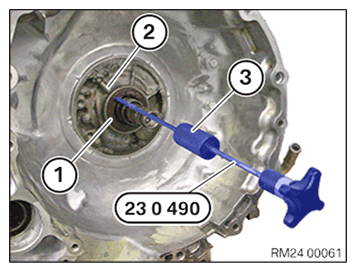

Punch a hole in radial shaft seal (1) at position (2) with center punch.
IMPORTANT:
Do not use a drill as metallic debris may result in transmission malfunction.
Screw special tool 23 0 490 into radial shaft seal (1).
Drive radial shaft seal (1) out with impact weight (3).
Installation:
Clean sealing surface.
Coat sealing lip of radial shaft seal with clean transmission oil.

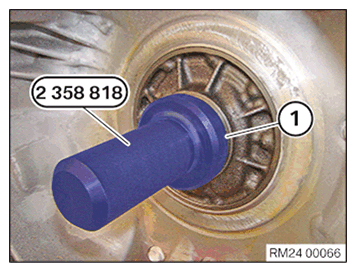

Slide radial shaft seal (1) onto special tool 2 358 818 and drive in up to stop.
IMPORTANT:
Do not damage radial shaft seal (1).
Required follow-up work:
- Install TORQUE CONVERTER .
- Install TRANSMISSION .
