REP-TAT-P-2421-01 Removing the left radial shaft seal on the differential (8-speed, AISIN GA8F22AW)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Refer to REMOVING THE FRONT LEFT AND RIGHT WHEELS
- Refer to REMOVING THE LEFT OUTPUT SHAFT
NOTE:
TECHNICAL INFORMATION
Do not use a drill. Shavings can damage the transmission and result in failure of the transmission.
Do not use a drill. Shavings can damage the transmission and result in failure of the transmission.

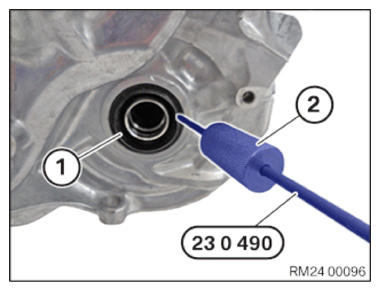

- Drive a hole in the radial shaft seal (1) with a center punch.
- Screw the special tool 0 491 454 (23 0 490) in the radial shaft seal (1) .
- Drive out the radial shaft seal (1) with the impact weight (2) .
