Replacing left radial shaft seal on differential (6-speed, AISIN GA6F21AW)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 23 0 490
- 2 413 037
- 2 414 017
Necessary preliminary work:
- Remove LEFT OUTPUT SHAFT .
- Remove INTAKE FILTER HOUSING .
Removal:
Drive a hole into radial shaft seal using a center punch.
IMPORTANT:
Do not use a drill as shavings may result in transmission malfunction.

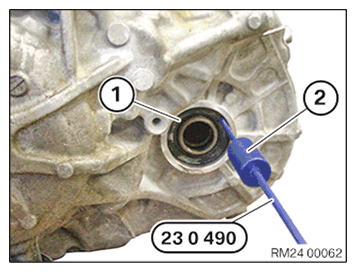

Thread special tool 23 0 490 into radial shaft seal (1).
Drive out radial shaft seal (1) with impact weight (2).
Installation:
Installation note:
Coat sealing lips of new radial shaft seal (1) with clean transmission oil.

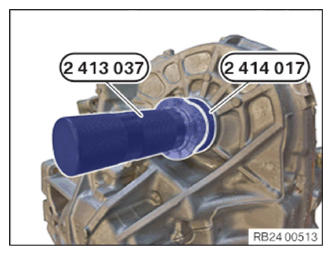

Drive in radial shaft seal with handle 2 413 037 and special tool 2 414 017 till the stop.
Required follow-up work:
- Install LEFT OUTPUT SHAFT .
- Check TRANSMISSION OIL LEVEL .
- Install INTAKE SILENCER HOUSING .
