Adjusting selector lever (6-speed, AISIN GA6F21AW)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
An incorrectly adjusted gearshift mechanism can result in tooth meshing noises that can be transmitted into the passenger compartment.
Necessary preliminary work:
- Shift selector lever into "P" position
- Remove INTAKE FILTER HOUSING .
Removal:

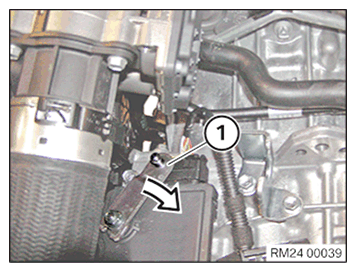

Remove screw (1).
The head piece for tolerance compensation must be easily moveable before installation.

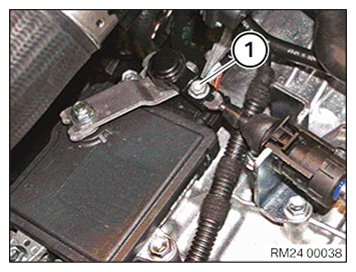

Release ball socket (1) from ball pivot.
Release cable (2) from support angle.
Position "P" of selector lever (1) is the rearmost locked position.
Installation:
Press in cable (2) into support angle.
Ensure cable counter support audibly engages.
Press on ball socket (1) onto ball pivot.
Tighten screw (1).
Tightening torque 24 51 1AZ .
Required follow-up work:
- Install INTAKE SILENCER HOUSING .
