Replacing the shifter transfer unit (GS6-58BG, GS6-59BG/DG)

Preliminary work needed:

• Remove INTAKE SILENCER HOUSING .
• Put the gear into neutral

Removal:

Lever the insert stands (3) of the selector lever cables from the ball joints with the open-end wrench SW13.

Courtesy of BMW OF NORTH AMERICA, INC.

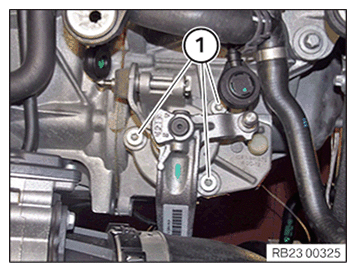

Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

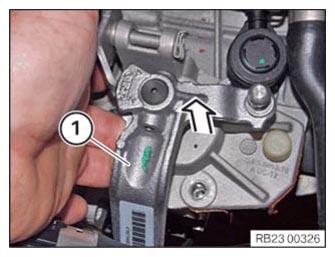

Release shift tower by tugging on the shift weight (1); pull shift tower approx. 30 mm out of the transmission housing.

Courtesy of BMW OF NORTH AMERICA, INC.

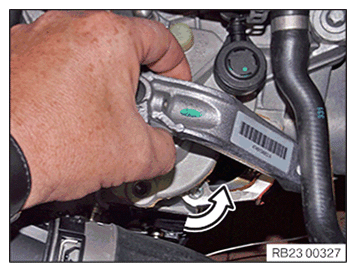

Turn shift tower unit through 90° counterclockwise.

Courtesy of BMW OF NORTH AMERICA, INC.

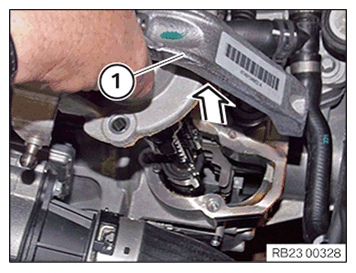

Pull out shift tower unit (1) upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION:

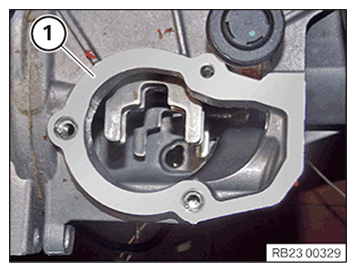

Clean sealing surface (1) with a lint-free cloth to remove gasket residues.

Courtesy of BMW OF NORTH AMERICA, INC.

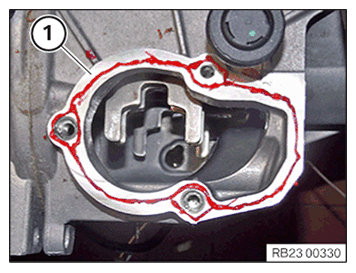

Apply surface sealant to sealing surface (1).

Surface sealant: Loctite 5203, BMW part number 83 19 0 395 783

Courtesy of BMW OF NORTH AMERICA, INC.

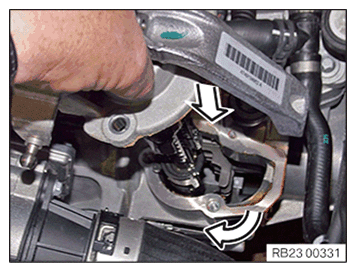

Rotate shift tower and insert into transmission to approx. 30 mm above the end position.

Then rotate shift tower through 90° clockwise to the end position and insert in the housing up to stop.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Installation note:

Replace screws.

Courtesy of BMW OF NORTH AMERICA, INC.

Attach selector lever cables (3) at ball joints.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install INTAKE SILENCER HOUSING .
