Replacing the radial shaft seal of the drive shaft (GS6-58BG, GS6-59BG/DG)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

23 0 380
23 0 490

Preliminary work needed:

Remove TRANSMISSION .
Remove CLUTCH RELEASE BEARING .

Removal:

Release screws (2) and remove guide tube (1).

G11720534

Courtesy of BMW OF NORTH AMERICA, INC.

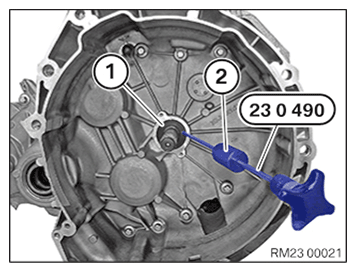

Drive a hole into radial shaft seal (1) using a center punch.

IMPORTANT: Do not use a drill as shavings may result in transmission malfunction.

Screw in special tool 23 0 490.

Drive out radial shaft seal (1) with impact weight (2).

G11720535

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Coat sealing lips of radial shaft seal with transmission oil.

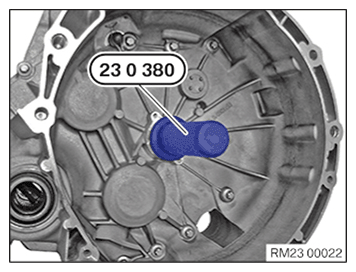

Push the radial shaft seal onto corresponding special tool 23 0 380 and drive it in to the stop.

Check TRANSMISSION OIL LEVEL and check for leak.

G11720536

Courtesy of BMW OF NORTH AMERICA, INC.

Install guide tube (1) and tighten screws (2).

Tightening torque 23 11 1AZ .

G11720534

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: After completion of repair work, check TRANSMISSION OIL LEVEL .

The vehicle must be parked on a level surface in the 095 workshop to check the transmission oil level.

Use only the approved transmission oil: MINI transmission oil MTF 2 or MTF 3.

Failure to comply with this requirement will result in serious damage to the manual transmission!

Required follow-up work:

Install CLUTCH RELEASE BEARING .
Install TRANSMISSION .
