Removing and installing/replacing left or right roof frame trim (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Pull headlining to one side.

Release screw on trim panel.

Remove clamp behind on tension cable (4).

Installation note:

If necessary, retrofit felt (3) in order to avoid rattling noises.

Courtesy of BMW OF NORTH AMERICA, INC.

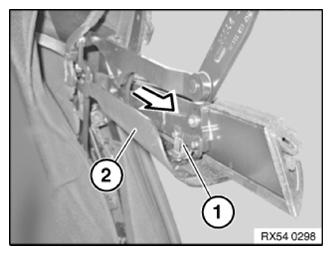

Slide trim panel (1) in arrow direction and remove.

Catch (2) remains in guide.

Courtesy of BMW OF NORTH AMERICA, INC.

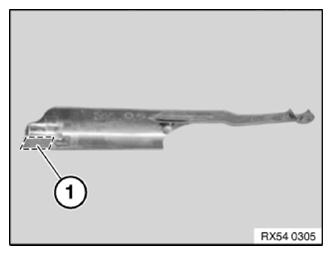

NOTE: If necessary, retrofit felt (1) in marked area.

Courtesy of BMW OF NORTH AMERICA, INC.
