REP-TAT-P-5434-02 Installing the front strut

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

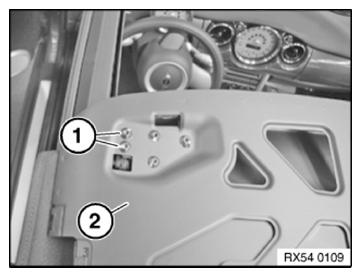

Install the front strut (2).
Align the front strut (2) with the cowl panel when the folding sunroof is closed.
Align and tighten the screws (1) the marks on the left and right.
TIGHTENING TORQUE SPECIFICATION

Front strut to frame

8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
Attach the tension cable (2) to the side of the roof frame.

Courtesy of BMW OF NORTH AMERICA, INC.

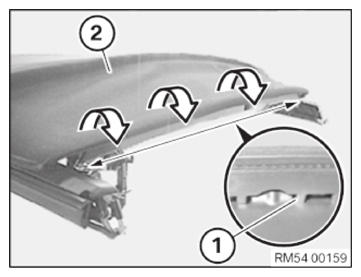

Attach the convertible top fabric (2) to the front strut (at the front).

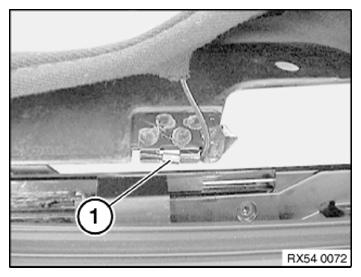

Clip in the detents (1) at the front in the highlighted area.

Courtesy of BMW OF NORTH AMERICA, INC.
Open folding sunroof a few centimeters to relieve tension on soft top cover.

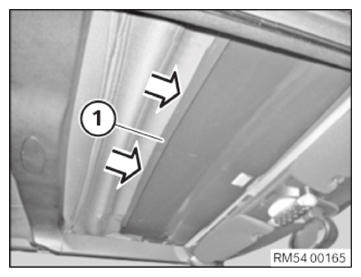

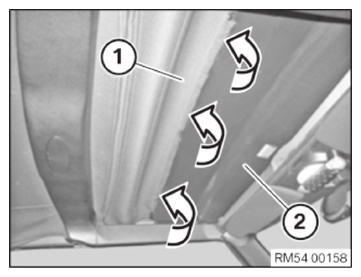

Completely remove the double-sided adhesive tape at the convertible top fabric (1) and attach new double-sided adhesive tape.
CONSUMABLE DESCRIPTION

Adhesive tape, double-sided 54112290978

Courtesy of BMW OF NORTH AMERICA, INC.
Bond the convertible top fabric (1) to the front strut (2).
Replace clamps for the trim (1).
Parts: 3 clamps
Connect the trim (1).
