REP-TAT-P-5434-01 Remove soft top bow

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Open folding sunroof a few centimeters to relieve tension on soft top cover.

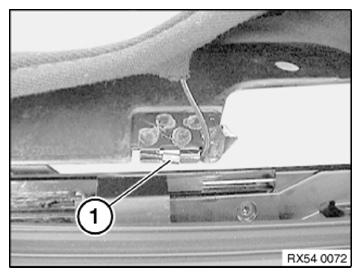

Detach the trim (1) towards the rear.

Courtesy of BMW OF NORTH AMERICA, INC.

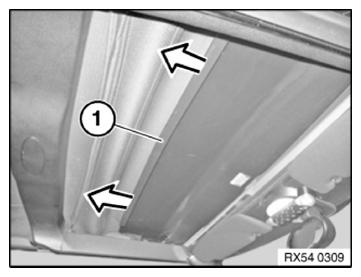

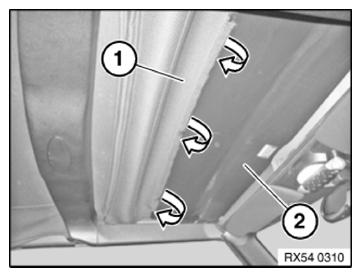

Carefully loosen the convertible top fabric (1) from the front strut (2).

Courtesy of BMW OF NORTH AMERICA, INC.

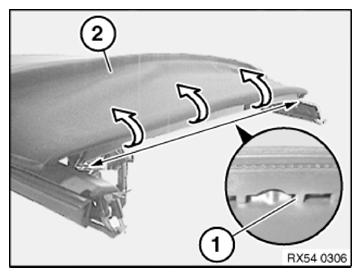

Unclip the detents (1) at the front in the highlighted area.
Remove the convertible top fabric (2) from the front strut (at the front) in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.
Detach the tension cable (2) at the side of the roof frame.

Courtesy of BMW OF NORTH AMERICA, INC.
Highlight the installation position of the screws (1) the left and right.
Loosen screws (1) left and right.
Remove the front strut (2).

Courtesy of BMW OF NORTH AMERICA, INC.
