63 99 315 Replacing light bulb(s) for left or right tail light (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling LIGHT BULBS (EXTERIOR LIGHTING) .

Preliminary work needed:

Open cover in trunk SIDE TRIM PANEL

Removal:

Release detents and remove light holder (1) from tail light (2).

Courtesy of BMW OF NORTH AMERICA, INC.

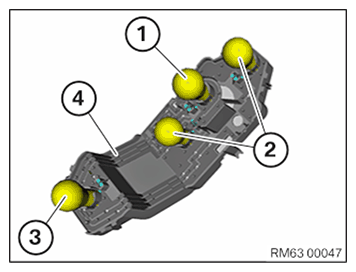

Carefully press bulb (1-3) into light holder (4) and counterclockwise turn.

Then pull out bulb (1-3) from light holder (4).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert bulb (1-3) into light holder (4).

Then carefully press bulb (1-3) into light holder (4) and turn clockwise up to stop.

Courtesy of BMW OF NORTH AMERICA, INC.

Insert light holder (1) in tail light (2).

NOTE: Ensure light holder (1) is correctly fitted and locked in tail light (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work required:

Close cover in trunk SIDE TRIM PANEL
