63 31 020 Removing and installing/replacing footwell light (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 020

IMPORTANT: Follow notes for handling LIGHT BULBS (INTERIOR LIGHTS) .

Removal:

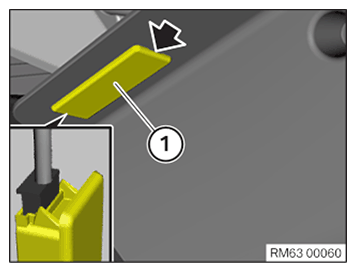

Footwell, left:

Lever out the footwell light (1) in the highlighted position using special tool 64 1 020.

Disconnect associated connector and remove footwell light (1).

Courtesy of BMW OF NORTH AMERICA, INC.

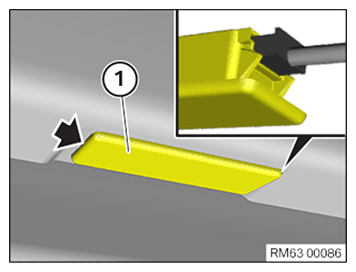

Footwell, right:

Lever out the footwell light (1) in the highlighted position using special tool 64 1 020.

Disconnect associated connector and remove footwell light (1).

Courtesy of BMW OF NORTH AMERICA, INC.

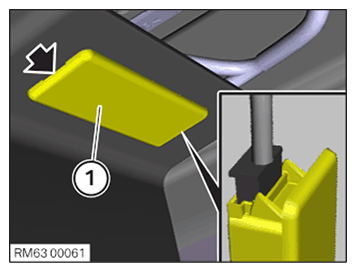

Bottom of door:

Lever out the footwell light (1) in the highlighted position using special tool 64 1 020.

Disconnect associated connector and remove footwell light (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Note: BULB TYPE .
LED technology lights must be completely replaced.

Installation:

Footwell, left:

Connect associated connector and join footwell light (1).

NOTE: Make sure footwell light (1) is correctly fitted.

Courtesy of BMW OF NORTH AMERICA, INC.

Footwell, right:

Connect associated connector and join footwell light (1).

NOTE: Make sure footwell light (1) is correctly fitted.

Courtesy of BMW OF NORTH AMERICA, INC.

Bottom of door:

Connect associated connector and join footwell light (1).

NOTE: Make sure footwell light (1) is correctly fitted.

Courtesy of BMW OF NORTH AMERICA, INC.
