Removing and installing/replacing complete rear fog light (John Cooper Works Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Removal:

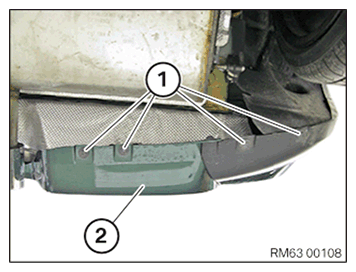

Unscrew the screws (1).

Slightly pull bumper cover (2) towards rear.

G11650038

Courtesy of BMW OF NORTH AMERICA, INC.

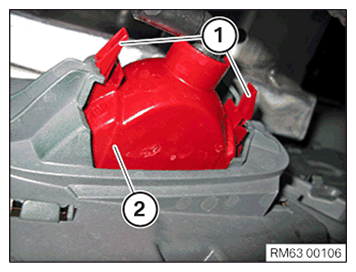

Unlock detents (1).

Feed out rear fog light (2) towards rear.

G11650039

Courtesy of BMW OF NORTH AMERICA, INC.

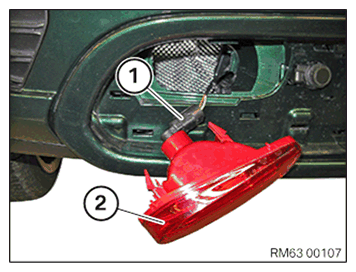

Unlock and disconnect the connector (1).

Remove rear fog light (2).

G11650040

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

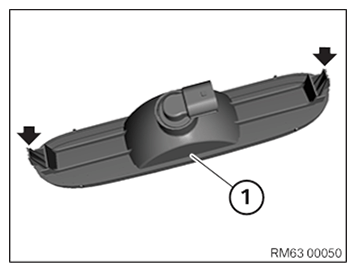

NOTE: Retaining tabs on the rear fog light (1) must not be missing or damaged.

G11650036

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the connector (1).

Feed in rear fog light (2).

G11650040

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Ensure rear fog light (2) is properly latched (1).

G11650039

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten bumper cover (2) with screws (1).

G11650038

Courtesy of BMW OF NORTH AMERICA, INC.
