63 21 010 Removing and installing/replacing complete rear fog light (Cooper Convertible)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

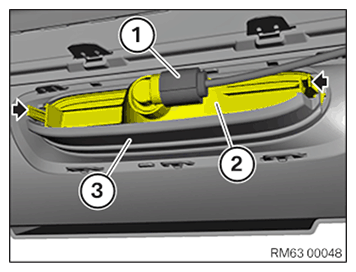

Removal:
Unlock and disconnect the connector (1).
Release detents while at the same time pressing rear fog light (2) outwards out of cover (2).
Installation:
NOTE:
Retaining tabs on rear fog light (1) must not be or missing or damaged.
Insert rear fog light (2) into cover (3).
Connect the connector (1).
NOTE:
Ensure rear fog light (2) engages correctly in cover (3).
