61 61... Adjusting left or right windshield wiper
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
A correctly adjusted angle of attack of the wiper arms to the windshield increases the wiping quality. Consult the vehicle specific repair instructions for adjustments.

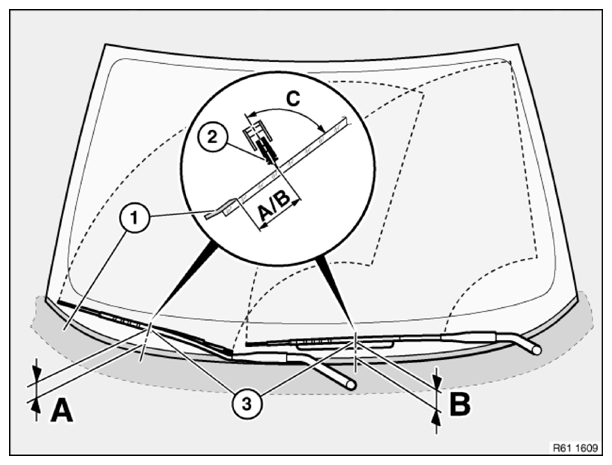

A/B = Distance between the wiper blade (2) and trim panel on the cowl panel (1)
NOTE:
Measurement is taken at the height of the mounting (3) for the windshield wiper arms
C= Angle of attack between wiper blade center plane and windshield
When adjusting with special tool 61 6 100 , set the scale value in accordance with the following table.
For RHD vehicles, change the preceding sign of the scale values.
- LHD cars, scale range 0 to -10
- RHD cars, scale range 0 to +10
| Model | Angle of attack (C) on windshield wiper arm | Scale value (LHD) on special tool | Setting dimension (A, B) on wiper arm | ||||
|---|---|---|---|---|---|---|---|
| Passenger's side | Driver's side | Passenger's side | Driver's side | Passenger's side | Driver's side | Rear end | |
| F54/F55/F56/F60 ECE | 82.5° ± 2° | 84° ± 2° | -3 | -3 | 72.6 ± 3 mm | 60.1 ± 3 mm | 10 ± 3 mm |
| F54/F55/F56/F60 US | 82.5° ± 2° | 84° 2° | -3 | -3 | 72.6 ± 3 mm | 73.9 ± 3 mm | 10 ± 3 mm |
