61 12... Removing and installing battery cover

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe SAFETY INFORMATION for handling vehicle battery.

Removal:

Partially detach seal (1).

Fig 1: Locating Battery Cover Seal

G11775001

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen cap nuts (1).

Open locks (2) by turning them anti-clockwise.

Remove windshield panel cover (3).

Fig 2: Locating Windshield Panel Cover

G11775002

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew the screws (1).

Remove battery cover (2).

Fig 3: Locating Battery Cover Screws

G11775003

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Thread in the battery cover (2).

Tighten down screws (1).

Tightening torque 61 21 6AZ .

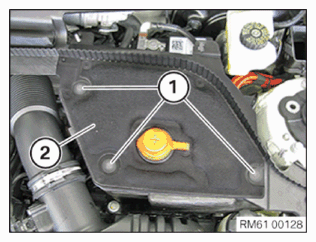

Fig 4: Locating Battery Cover Screws

G11775004

Courtesy of BMW OF NORTH AMERICA, INC.

Thread in the windshield panel cover (3).

Turn the locks (2) to the right until the stop is reached.

Tighten cap nuts (1).

Tightening torque 61 21 6AZ .

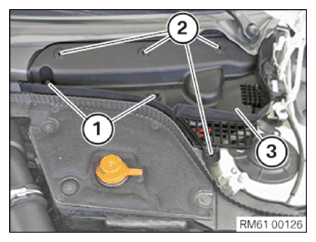

Fig 5: Locating Windshield Panel Cover And Cap Nuts

G11775005

Courtesy of BMW OF NORTH AMERICA, INC.

Join gasket (1).

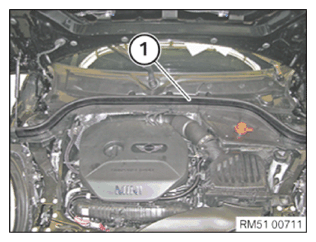

Fig 6: Locating Battery Cover Gasket

G11775006

Courtesy of BMW OF NORTH AMERICA, INC.
