61 34... Removing and installing/replacing 12-V power socket

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 250

Preliminary work needed:

Remove USB AUDIO INTERFACE CONNECTING SOCKET
Remove RIGHT TRUNK WHEEL ARCH PANEL

Front center console:

Disconnect the connector from the socket through the opening.

Remove the socket with a special tool. See Fig 3.

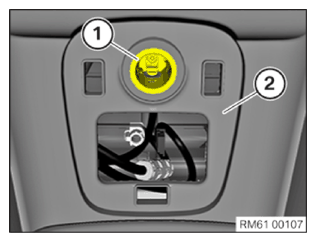

Fig 1: Locating Front Center Console And Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Trunk, right:

Remove the socket with a special tool. See Fig 3.

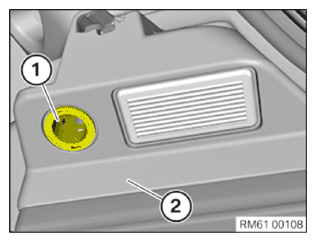

Fig 2: Locating Right Trunk And Socket

Courtesy of BMW OF NORTH AMERICA, INC.

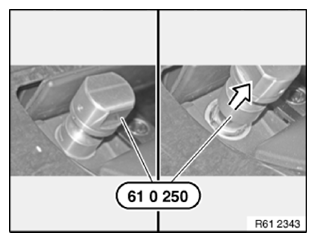

Pull out 12-V power socket from housing with special tool 61 0 250 until connector is at bottom of light ring.

Fig 3: Pulling Out 12-V Power Socket From Housing With Special Tool (61 0 250)

Courtesy of BMW OF NORTH AMERICA, INC.
