Front axle + steering: Perform wheel alignment after the following repair work (Cooper Convertible)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Perform either the KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP or the KINEMATICS DIAGNOSIS SYSTEM WHEEL ALIGNMENT WITH RIDE HEIGHT MEASUREMENT WITHOUT LOADING THE VEHICLEafter the following repair work:
- Release the following screw connection
:
- Steering box to front axle support
- Tie rod end to tie rod
- Wishbone to front axle support

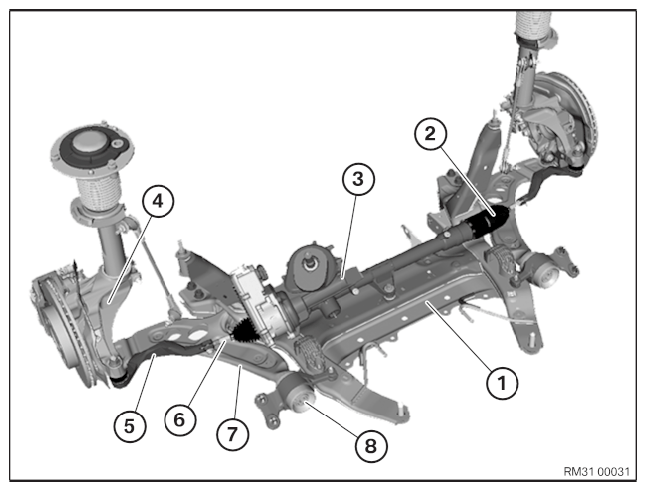

- Replacement of following parts
:
- Front axle carrier
- Bellows (if the tie rod end has to be screwed off)
- Steering gear
- Swivel bearing
- Tie rod end
- Tie rod
- Wishbone
- Rubber mount with holder for wishbone
