Removing and installing/replacing intake camshaft adjuster (B36 engine) (Cooper base)

Special tools required:

• 2 358 122
• 0 496 855
• 2 450 487
• 11 6 480

Preliminary work needed:

• Check TIMING .
• Remove CATALYTIC CONVERTER .

Courtesy of BMW OF NORTH AMERICA, INC.

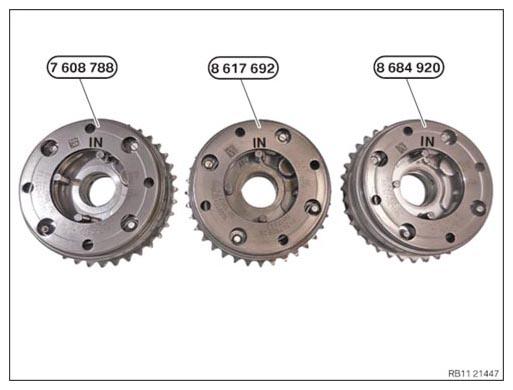

Overview illustration of the intake adjuster:

7 608 788 intake adjuster

8 617 692 intake adjuster

8 684 920 intake adjuster

Removal:

Courtesy of BMW OF NORTH AMERICA, INC.

Remove chain tensioner (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Version 1

Use the reversible ratchet head (2) from special tool 0 496 855 with special tool 2 450 487 to release the central valve (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

Use special tool 0 496 855 to release the central valve (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Release VANOS central valve (1) of exhaust camshaft adjuster.

Courtesy of BMW OF NORTH AMERICA, INC.

Release VANOS central valve (1) of intake camshaft adjuster.

Courtesy of BMW OF NORTH AMERICA, INC.

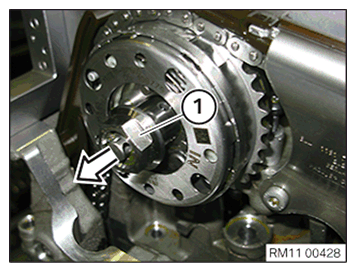

Remove VANOS central valve (1) of intake side.

Courtesy of BMW OF NORTH AMERICA, INC.

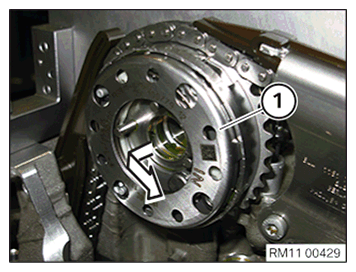

Remove intake adjuster (1) from intake camshaft.

Slightly tilt intake adjuster (1) and remove downwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Intake and exhaust camshaft adjusters are different.

VANOS has been highlighted with EX  for the exhaust camshaft.

VANOS has been highlighted with IN  for the intake camshaft.

Courtesy of BMW OF NORTH AMERICA, INC.

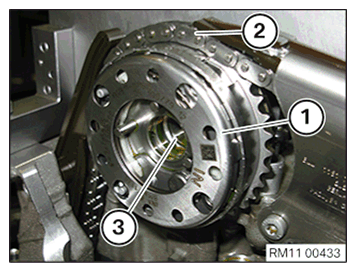

Feed intake adjuster (1) into timing chain (2) and position on intake camshaft (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Abut VANOS central valve (1) of intake side.

Courtesy of BMW OF NORTH AMERICA, INC.

Install new chain tensioner.

Parts:  Chain tensioner

Tighten chain tensioner (1).

Tightening torque 11 31 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten VANOS central valve of intake camshaft adjuster (1).

Tightening torque 11 36 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten VANOS central valve of exhaust camshaft adjuster (1).

Tightening torque 11 36 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all special tools.

Crank engine with special tool 11 6 480 twice in direction of engine rotation.

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Check TIMING .
• Attach CATALYTIC CONVERTER .

When replacing the intake adjusters, the I level must be possibly coded and programmed.

• Connect diagnosis system and follow the diagnosis instructions.
• Service functions
• Drive
• Engine electronics
• Reset VANOS adaptation values
• Code and program I level if necessary
