Removing and installing/replacing both VANOS actuators (B36 engine) (Cooper base)

Special tools required:

• 2 360 895

Preliminary work needed:

• Remove ACOUSTIC COVER .
• Remove INTAKE SILENCER HOUSING .

Removal:

Release clamps (1).

Remove clean air pipe (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock the cable routing (1) in the marked areas and detach it off the cylinder head cover in upward direction.

Courtesy of BMW OF NORTH AMERICA, INC.

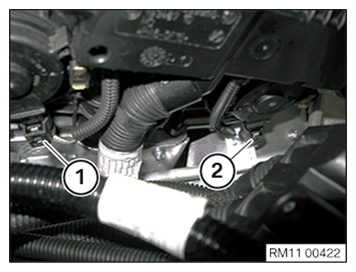

Release and disconnect the connector (1) for the actuator intake.

Release and disconnect the connector (2) for the actuator exhaust.

Courtesy of BMW OF NORTH AMERICA, INC.

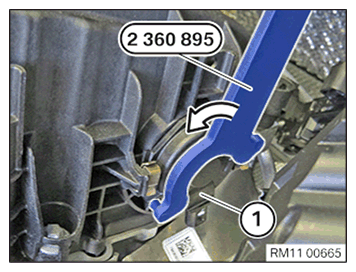

Twist the actuator intake (1) with special tool 2 360 895 approx. 50° in the arrow direction and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

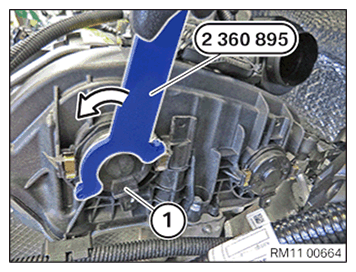

Twist the actuator exhaust (1) with special tool 2 360 895 approx. 50° in the arrow direction and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

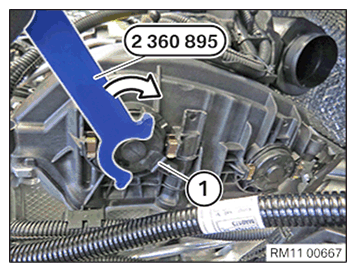

Position actuator exhaust (1) and turn in the arrow direction with special tool 2 360 895, until the stop lies against the clamp.

Courtesy of BMW OF NORTH AMERICA, INC.

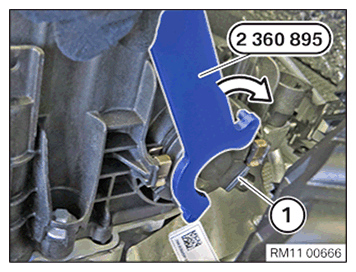

Position actuator intake (1) and turn in the arrow direction with special tool 2 360 895, until the stop lies against the clamp.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the connector (1) for the actuator intake.

Connect the connector (2) for the actuator exhaust.

Courtesy of BMW OF NORTH AMERICA, INC.

Clip the cable routing (1) into the cylinder head cover from the top.

Make sure that the locks in the marked areas are correctly locked.

Courtesy of BMW OF NORTH AMERICA, INC.

Install clean air pipe (2) and fasten with clamps (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install INTAKE SILENCER HOUSING .
• Install ACOUSTIC COVER .
• Check engine operation and check for leak tightness
