Checking compression of all cylinders (B48 and B46 engine) (Cooper S and John Cooper Works)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 11 0222
- 11 8 732
- 11 8 731
- 2 410 242
Preliminary work needed:
- Reading out the fault memory
- Rectify faults
- Delete fault memory
- Remove SPARK PLUGS .
Unscrew tip (1) from special tool 11 0 222.
IMPORTANT:
Then check the Schrader valve that is now visible for secure seating.
Prepare special tool 11 0 222 in conjunction with 11 8 732 and 11 8 731.
Screw special tool 11 0 222 into special tool 11 8 731 to 10 Nm.

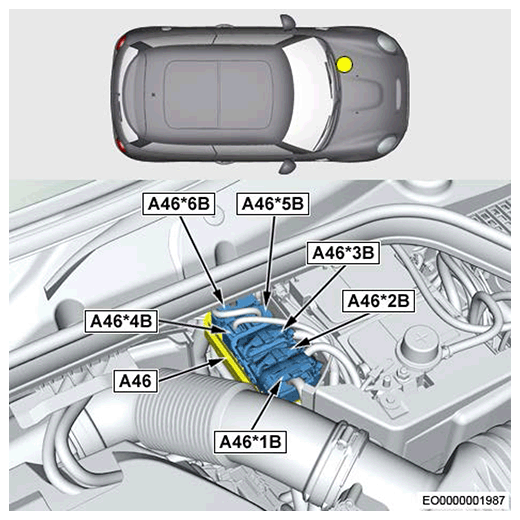

Disconnect plug connection A46*6B on the DME control unit.
Connect special tool 2 410 242 to special tool 11 0 222 with the bayonet closure.
Screw in the 100-bar sensor (1) on the special tool 2 410 242 hand-tight.

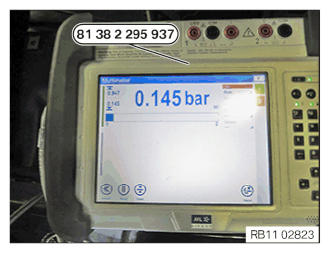

Connect 100-Bar sensor (1) with the Integrated Measurement Interface Box.
Illustration: N74.
Manually screw special tool 11 0 222 into the spark plug thread.
Follow diagnosis instruction.
Diagnosis path : Drive -> Motor Electronics -> compression test.
Required follow-up work:
- Install SPARK PLUGS .
- Connect all of the connectors to the injectors
- Delete fault memory
