Vent and fill cooling system with vacuum filling unit (Cooper)

Special tools required:

• 00 2 030
• 17 0 100

Attention!  - Service life coolant filling: - Never reuse used coolant! - When replacing and removing components which rely on the corrosion protection effect of the coolant, it is essential to change the coolant. The cooling system must therefore be drained and refilled - In the case of other removal work involving the draining of part quantities of coolant, replace these quantities which have been drained with new coolant - Attention!  - You must protect the alternator against contamination by coolant when carrying out repair work on the coolant circuit - Cover alternator with suitable materials - Failure to comply with this procedure may result in an alternator malfunction - Ordering information:

• BMW Workshop equipment
• BMW Workshop Equipment Catalog
• Vacuum filling equipment, order number 81 39 2 152 473
• Drip pan, order number 81 49 2 152 347
• Adapter: 17 0 100

Attention!  - Risk of slipping due to coolant on the floor. Injury hazard! - Catch and dispose of emerging coolant in drip tray (1) and, if needed, special tool 00 2 030 (universal jack) - Recycling:  - Observe country-specific waste disposal regulations - Attention!  - All coolant hoses must be checked before filling cooling system with vacuum filling unit - If necessary, replace damaged and porous coolant hoses.

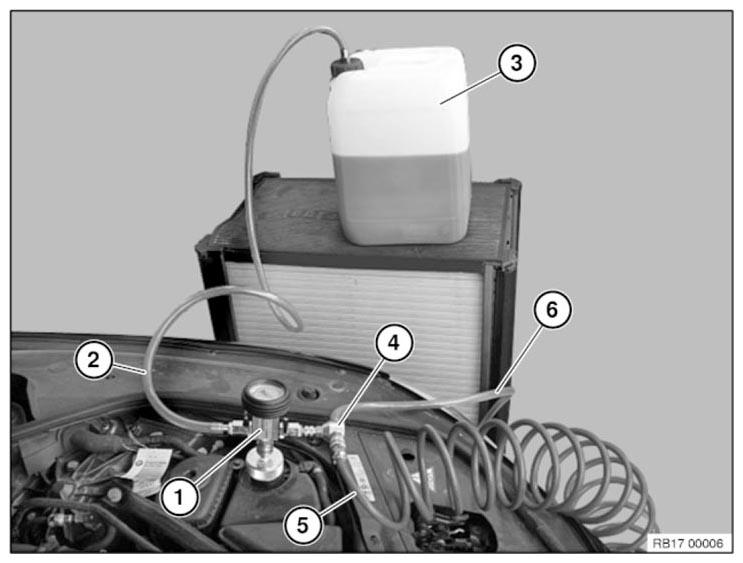

• 1) Vacuum filling equipment with pressure gauge and shutoff valves
• 2) Filler hose
• 3) Coolant container
• 4) Venturi nozzle
• 5) Compressed air connection (max. 6 bar)
• 6) Outgoing-air hose (lead outgoing-air hose into a collecting container)

Preconditions

• Cooling system expansion tank must be empty.
• There must be sufficient premixed coolant in the vacuum filling equipment container, 1-2 liters more than the prescribed vehicle filling capacity.
• Use only recommended coolant.
• Observe the appropriate Antifreeze/water mixture ratio.
• Observe CAPACITIES .

• Position vacuum filling equipment container at the same height as the coolant expansion tank.
• Compressed-air connection with 6 bar pressure present.
• Set heating to maximum temperature.

Select adapter (Y) according to table and connect to coolant expansion tank - Connect vacuum filling unit to adapter connection (X).

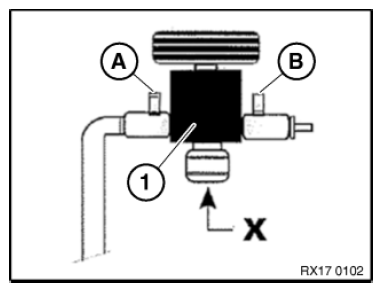

Shutoff valves (A) and (B) of the vacuum filling equipment (1) must be closed - (X) Expansion tank connection

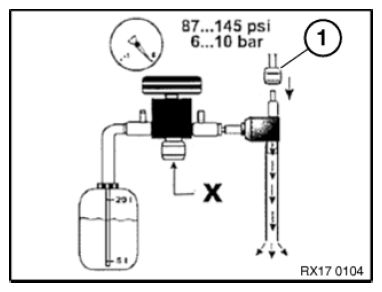

Connect Venturi nozzle (1) to vacuum filling unit (2) - (X) Expansion tank connection

Connect compressed air (1) - (X) Expansion tank connection

Open shutoff valve (B) - The venturi nozzle produces a flow noise.

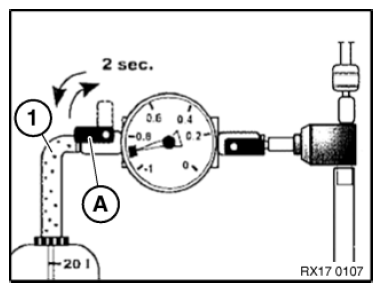

Then open shutoff valve (A) until the filling hose (1) is free of bubbles - Close shutoff valve (A) again. The filling hose (1) is vented in this way.

Shutoff valve (B) will remain open. Create vacuum in coolant circuit for about 2 minutes. The final vacuum is reached at a vacuum of -0.7 to -0.95 bar - Green scale in the pressure gauge.

Then close shutoff valve (B) again.

Both shutoff valves (A) and (B) must be closed. Then seal Venturi nozzle (1).

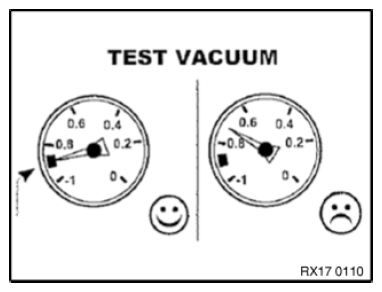

The cooling system must hold the vacuum for 30 s. If the needle in the pressure gauge drops, this indicates a leak in the cooling system - If the vacuum remains constant, proceed with filling - Check for tightness if there are leaks.

Attention!  - There must be sufficient premixed coolant in the vacuum filling equipment container: 1-2 liters more than the vehicle's filling capacity - Position vacuum filling equipment container at the same height as the coolant expansion tank - Shut-off valve (B) remains closed during the filling process.

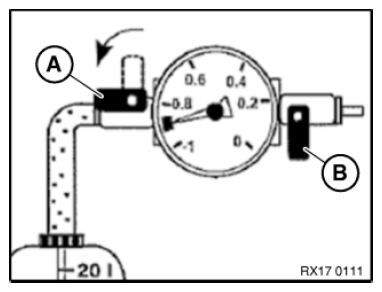

To fill the cooling system, open shutoff valve (A) to vacuum filling equipment container.

Coolant is now added - The filling procedure is finished when the needle in the pressure gauge is at 0 bar or no longer falls - If necessary, reduce remaining vacuum. Open shutoff valve (B) to do so.

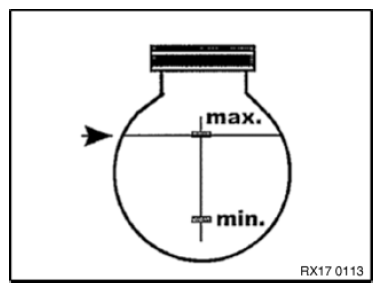

Remove vacuum filling unit with adapter from expansion tank - Adjust coolant level to maximum - Close coolant expansion tank.

After the cooling system has been filled with the vacuum filling unit, another bleeding procedure must be performed for the following vehicles:

• E84 N20
• F25, F26 N52T, N55,
• F25, F26 N20
• E70, E71 N63, S63
• E70, E71 N57 D30 S1
• E72 N63
• F20, F21, F30, F31 F35, N13 F20, F21, F22, F23, F30, F31, F32, F33, F34, F35 F36 N20, N26 F20, F21, F22, F23, F30, F31, F32, F33, F34, F35 F36 F87 N55
• F30 N55 hybrid vehicle
• F15 N55
• F15 N63 B44 O1
• F15 N57 D30 S1
• F54, F55, F56, F57, F60, B36, B38, B48, B46 .
• F80, F82, F83, S55
• F39, F45, F46, F48, B32, B38, B42, B46, B48
• F25, F26, B47
• F45, F46, F48, B47, B37
• F54, F55, F56, F60, B37, B47
• F16 N63 B44 O1
• F16 N55
• F16 N57 D30 S1 F20, F21, F22, F23, F30, F31, F32, F33, F34, F36, B47
• F21, F20, B37
• F85, F86 S63 T2

After the cooling system has been filled with the vacuum filling unit, another bleeding procedure must be performed for vehicles with an electric coolant pump:

Switch on the low-beam headlights to perform the bleeding procedure. If the low- beam headlights are not switched on, the ignition (Terminal 15) will switch off automatically after a certain period of time and interrupt the bleeding procedure.

1. Connect battery charger
2. Switch on ignition.
3. Switch on low-beam headlight.
4. Set heating to maximum temperature. Take back blower to smallest stage.
5. Driving dynamics control must not be set to ECO PRO!
6. Press accelerator pedal for 10 seconds to floor Engine  must not  be started.
7. The bleeding procedure was started by pressing the accelerator pedal and takes about 12 minutes (the electric coolant pump was activated and switches off automatically after about 12 minutes).
8. Then adjust fill level in coolant expansion tank to maximum.
9. Check cooling system for tightness.
10. If the cooling system bleeding procedure has to be performed again, deactivate the DME completely (remove ignition key for about three minutes). Then repeat from point 3.

Check function of cooling system - Check cooling system for tightness.
