41 14... Replacing rear left outer wheel arch section (rear quarter panel removed)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Observe REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

Spot-weld bonding is used on this vehicle. Observe specific PROCEDURE .

Use only an approved SPOT WELDER for repairs!

The following new parts are required:

(1) Rear outer wheel arch section
Outer cavity acoustic baffle B-pillar

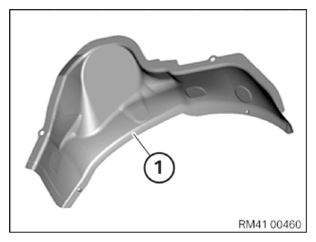

Fig 1: Rear Outer Wheel Arch Section

G11774692

Courtesy of BMW OF NORTH AMERICA, INC.

Removal

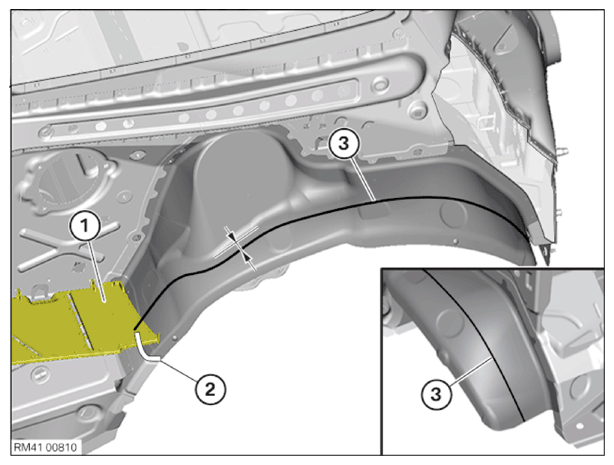

Fig 2: Cavity Sealing And Welded Connections In Area

G11774693

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cavity sealing (1).

Open WELDED CONNECTIONS in area (2).

Mark and perform separating cut (3) according to the dimension and the schematic diagram.

Measurement a = approximately 20 mm from radius.

New part preparation

Mark severance cut on new part according to severance cut on vehicle + 20 mm material extra and cut.

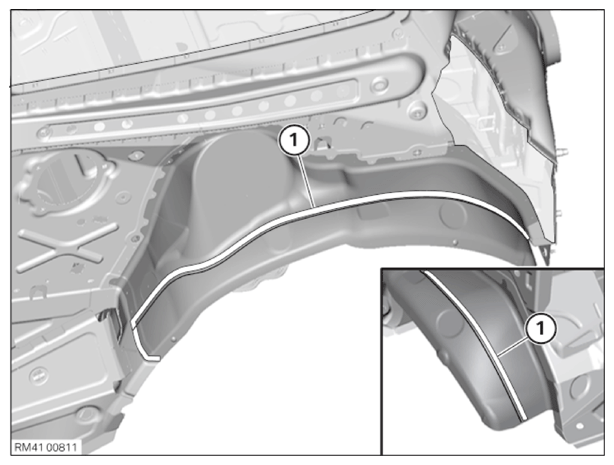

Fig 3: Outer Wheel Arch Section And Welding Area

G11774694

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust new parts in combination with side wall to fit and secure.

Prepare the new part for joining by welding in this area (1).

Installation

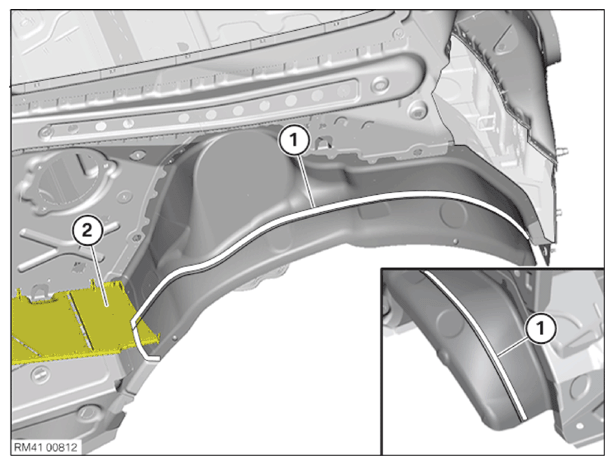

Fig 4: Outer Wheel Arch Section And Welding Area

G11774695

Courtesy of BMW OF NORTH AMERICA, INC.

Install outer wheel arch section and weld in area (1).

Apply sealant to new CAVITY ACOUSTIC BAFFLE . Install cavity sealing (2).
