41 14 531 Replacing engine support/front left side frame connection (front left wheel arch removed)

Observe procedure for REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

Spot-weld bonding is used on this vehicle.

Observe specific PROCEDURE .

The following new body parts are required:

• (1) Connection, wheel arch/entrance

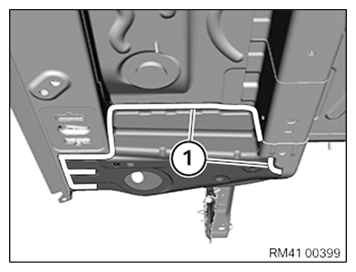

Fig 1: Connection, Wheel Arch/Entrance

Courtesy of BMW OF NORTH AMERICA, INC.

Removal:

Open WELDED CONNECTIONS  in area (1).

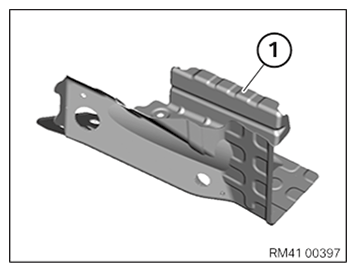

Fig 2: Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open WELDED CONNECTIONS  in areas (1) and remove connection between the engine support and side frame.

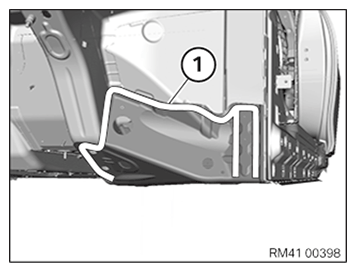

Fig 3: Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Fit in new part.

Installation:

Install new part and weld in area (1).

Fig 4: Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

Weld new part in the areas (1).

Fig 5: Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.
