41 11 311 Replacing entrance for door front left

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Observe procedure for REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

Use only approved SPOT-WELDING APPARATUS for repairs.

The following new body parts are required:

(1) Side sill, outer

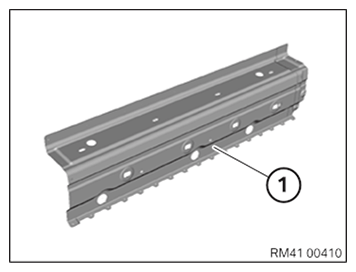

Fig 1: Side Sill, Outer
Courtesy of BMW OF NORTH AMERICA, INC.

Removal

Open WELDED CONNECTIONS in area (1) and remove side sill.

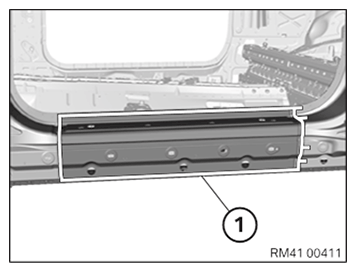

Fig 2: Side Sill Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Fit in new part.

Installation

Install new part and weld in area (1).

Fig 3: Side Sill Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.
