41 33 720 Replacing the left headlight fixture

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Necessary preliminary tasks:

Remove TRIM ON LEFT WHEEL ARCH
Remove LEFT HEADLIGHT

Removal:

Detach wiring harness at attachment points (1).

Release screws (2) to (4) and remove headlight fixture (5).

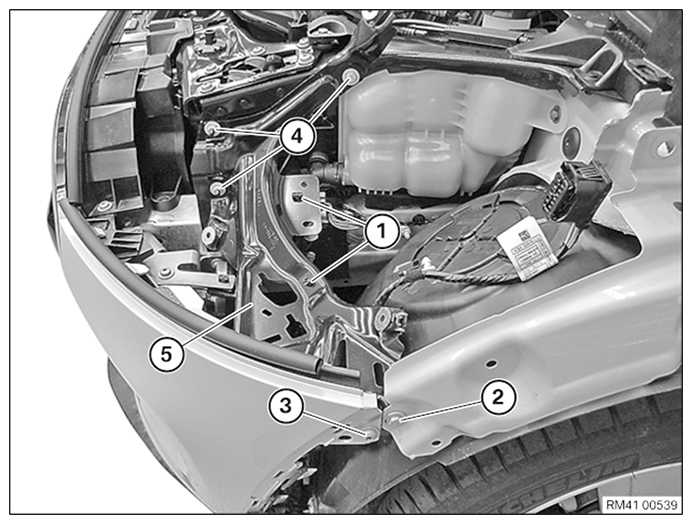

Fig 1: Wiring Harness Attachment Points, Screws, And Headlight Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install headlight fixture (5) and tighten screws (2) to (4).

Screws (4): Tightening torque 41 33 3AZ .

Screw (2): Tightening torque 41 35 1AZ .

Screw (3): Tightening torque 51 11 1AZ .

Secure wiring harness in areas (1).
