41 00... Overview of adhesive cartridge guns

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

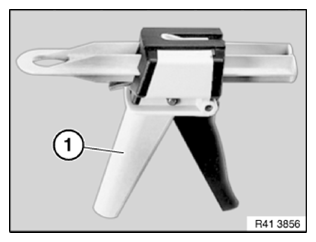

Adhesive gun 83 19 2 149 522

Obtainable via BMW/MINI parts catalogue.

Usable for adhesives K4, K5a.

Usable for BMW/MINI 2K polyurethane foam.

Including insert 1:1 and 2:1.

Fig 1: Adhesive Cartridge Guns

G11774637

Courtesy of BMW OF NORTH AMERICA, INC.

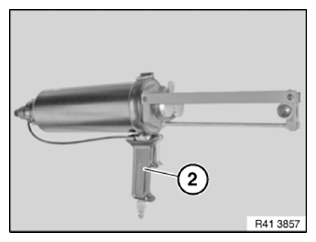

Adhesive gun 81 49 0 443 166

Obtainable via BMW/MINI.

Usable for adhesive K3.

Fig 2: Adhesive Gun

G11774638

Courtesy of BMW OF NORTH AMERICA, INC.

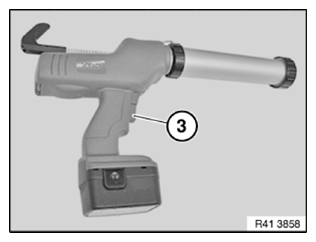

Adhesive cartridge gun 81 49 2 213 059

Obtainable via BMW/MINI.

Usable for adhesives K1, K5b, sealant D1/D2, window glass adhesive and all 310 ml Euro cartridges.

Fig 3: Adhesive Cartridge Gun

G11774639

Courtesy of BMW OF NORTH AMERICA, INC.

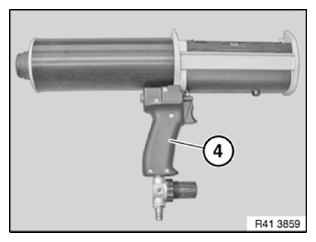

Adhesive cartridge gun 83 30 0 494 836

Obtainable via BMW/MINI.

Usable for structural foam HS2.

NOTE: Special tool number 41 3 010

Fig 4: Adhesive Cartridge Gun

G11774640

Courtesy of BMW OF NORTH AMERICA, INC.

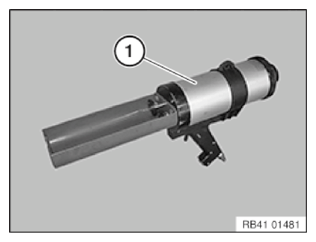

Adhesive cartridge gun 81 49 2 355 475

Obtainable via BMW/MINI.

Usable for adhesive K2 (2x290 ml glue cartridge)

Fig 5: Adhesive Cartridge Gun

G11774641

Courtesy of BMW OF NORTH AMERICA, INC.
