Frame Reference Dimension, Body (Cooper, Cooper S, John Cooper Works)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Dimensions in mm.

Dimensional tolerances:

≤ 1000 mm ± 1.5 mm
≥ 1000 mm ± 2.5 mm

The checkpoints shown serve to check the body and the set of attachments.

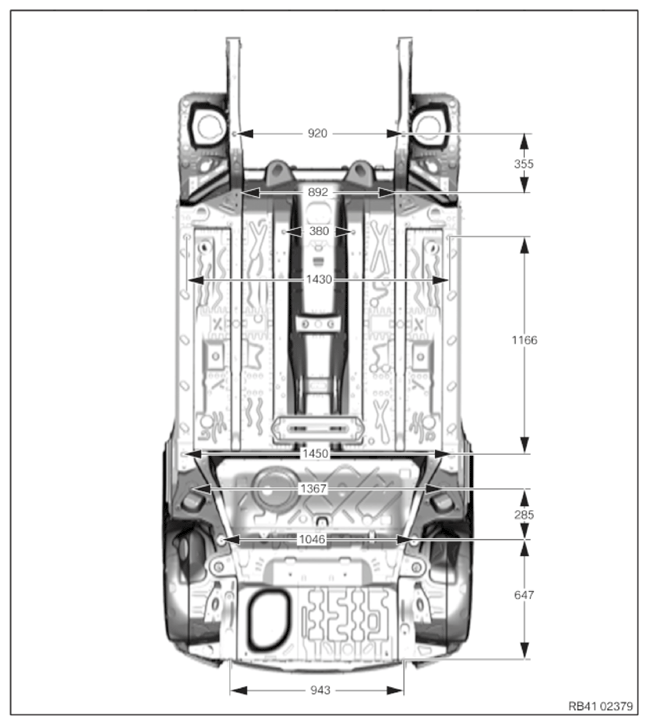

Underbody View 1

Fig 1: Body Frame Dimensions And Measurement Points (1 Of 2)

G13796812

Courtesy of BMW OF NORTH AMERICA, INC.

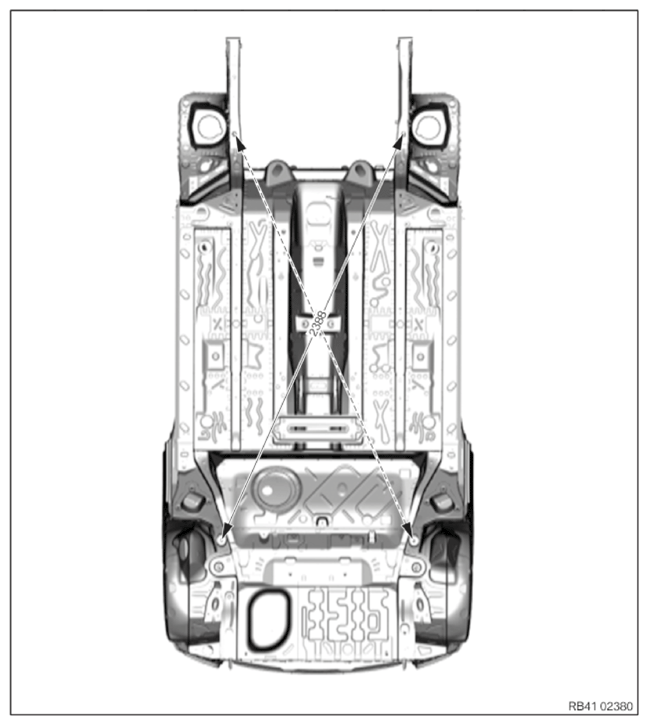

Underbody View 2

Fig 2: Body Frame Dimensions And Measurement Points (2 Of 2)

G13796813

Courtesy of BMW OF NORTH AMERICA, INC.

Top View, Front End

Fig 3: Engine Compartment Dimensions And Measurement Points

G11787875

Courtesy of BMW OF NORTH AMERICA, INC.

View, B-Pillar

G11787876

Courtesy of BMW OF NORTH AMERICA, INC.

Measurement a=1438 mm between the top screw-on points of the lock striker.
