Removing and installing/replacing front left or right lower strap (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove driver's side FRONT SEAT and/or passenger's side FRONT SEAT .

Removal:

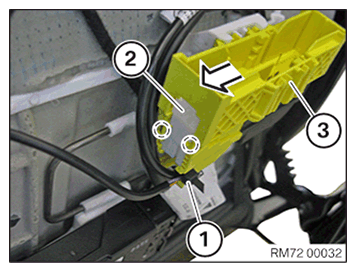

Cut open cable tie (1).

Unlock detents and feed out connector (2) from connector housing (3) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

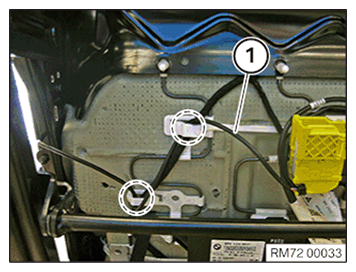

Detach cable (1) from seat mechanism.

Courtesy of BMW OF NORTH AMERICA, INC.

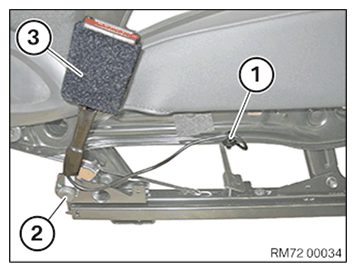

Release fixture (1) from seat mechanism.

Remove screw (2).

Remove lower strap lining (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Mount lower strap (3) on seat mechanism.

NOTE: Lower strap is encoded against incorrect assembly (3).

Replace screw (2).

Tighten screw (2).

Tightening torque 72 11 5AZ .

Mount cable with clip (1) to seat mechanism.

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in cable (1) to seat mechanism.

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in connector (1) into connector housing (2).

NOTE: Ensure correct locking.

Secure cable to connector housing (2) with cable tie (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install driver's side FRONT SEAT and/or passenger's side FRONT SEAT .
