Removing and installing/replacing pressure switch for Natural Vacuum Leak Detection (Natural Vacuum Leak Detection) (US version with Natural Vacuum Leak Detection) (Cooper)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work needed:
- Remove rear left WHEEL ARCH PANEL .
IMPORTANT:
When replacing the pressure switch, the DUST FILTER must also always be replaced.
Removal:

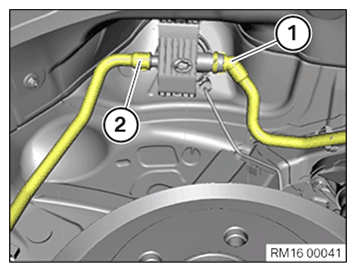

Unlock and disconnect snap fastener (1).
Release clamp (2) and detach line.

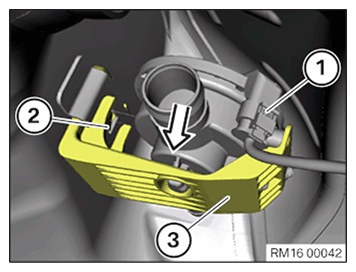

Disconnect plug connection (1).
Operate lever (2) and remove holder for pressure switch (3) downwards.
Installation:

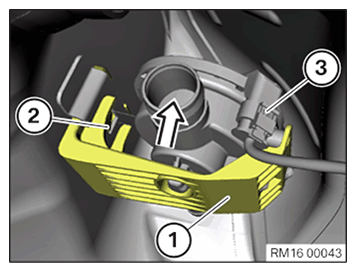

Insert holder with pressure switch (1) into the holder.
Lever (2) must engage in the holder.
Connect plug connection (3).
replace clamp (2).
Fit line and tighten clamp (2).
Parts : cl.
Position snap fastener (1) and lock.
Required follow-up work:
- Install rear left WHEEL ARCH PANEL .
