Removing and installing/replacing ultrasound sensor for parking assistant (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Partially remove front left or right WHEEL ARCH COVER .

Removal:

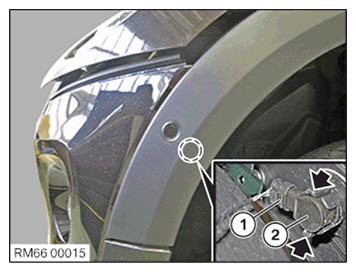

Unfasten plug connection (1) and disconnect.

Unlock latches at marked points.

Pull ultrasonic transducer (2) out of holder.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Engage ultrasonic sensor (2) in holder.

Join and lock plug connection (1).

NOTE: Detents must not be damaged!

Make sure ultrasonic sensor (2) is securely seated.

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Install front left or right WHEEL ARCH COVER .
