Removing and installing/replacing PMA control unit (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove rear right side TRIM PANEL .

Removal:

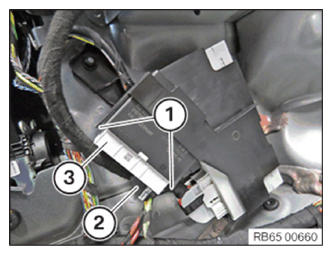

Unlock detents (1).

Unlock and disconnect connector (2).

Pull the control unit (3) from the holder.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/CODING .

Installation:

Correctly insert the control unit (3) into the holder.

Detents (1) must lock correctly.

Join and lock connector (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Install the rear right side TRIM PANEL .
