Removing and installing/replacing interior antenna for Comfort Access (front storage compartment) (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove complete CENTER CONSOLE .

Removal:

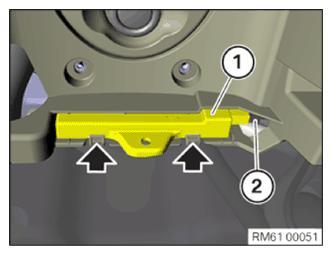

Release detents on holder.

Remove interior antenna for Comfort Access (1) from holder.

Unlock and disconnect connector (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect connector (2).

Join interior antenna for Comfort Access (1) in holder.

Installation note:

Ensure interior antenna for Comfort Access (1) engages correctly in holder.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install complete CENTER CONSOLE .
