Removing and installing/replacing antenna for Comfort Access on left or right (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove TRIM PANEL for cover on side member.

Removal:

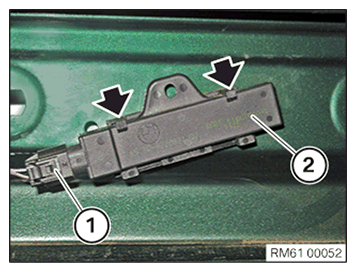

Unlock and disconnect the connector (1).

Release interior antenna for Comfort Access (2) from detents and remove from holder.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect the connector (1).

Join interior antenna for Comfort Access (2) in holder.

NOTE: Ensure interior antenna for Comfort Access (2) engages correctly in holder.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install TRIM PANEL for cover on side member.
