Removing and installing/replacing edge protection for left or right front door (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove door sill COVER STRIP .

NOTE: Observe and comply with the NOTES on seals installation.

Removal:

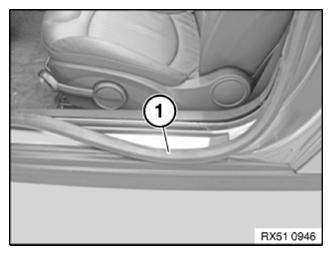

Detach edge protection (1) from bottom of fold first.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation :

Correctly position the edge protection (1).

Courtesy of BMW OF NORTH AMERICA, INC.

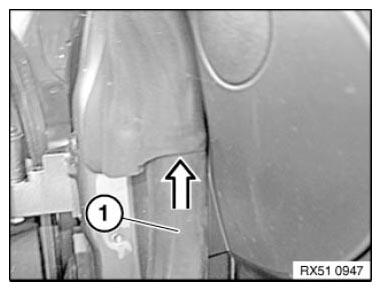

Insert the edge protection (1) in the direction of the cowl panel.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work needed:

Install door sill COVER STRIP .
