Removing windows with an oscillating knife (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe the NOTES airbag safety regulations! (risk of injury).
IMPORTANT: Handle sharp-edged tools with care (risk of damage to the head airbag and the window glass).
IMPORTANT: Follow the vehicle-specific repair instructions!
Always wear safety goggles and protective gloves for your own safety.
Cover the working area (side walls, roof-mounted antenna and if necessary, interior equipment) with protective covers.
Tape off body with fabric adhesive tape (e.g. Tesa) in areas where the oscillating knife could damage the window glass or the paint.

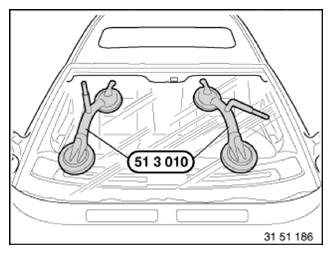

Use suction cups (51 3 010) to lift out the window glass.

Always keep both suction cups dry and clean to ensure optimum adhesion on the windshield.

Secure window glass against falling out.

G13797542Courtesy of BMW OF NORTH AMERICA, INC.

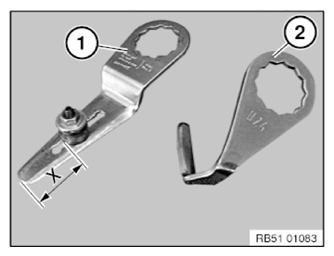

Depending on the area of application, knife 1 or 2 is used.

  1. Straight knife with adjustable thrust roller
  2. U-shaped knife

Dimension (X) on the knife (1) can be adjusted individually, see vehicle-specific repair instructions.

NOTE: Sharpen knife blade before every use on a running machine with a grinding stone (even with new knife blade).
G13797543Courtesy of BMW OF NORTH AMERICA, INC.

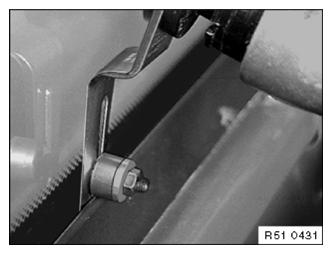

Removing from the inside:

Guide knife carefully between body and window glass.

Run blade of knife parallel to glass.

Take care not to damage paintwork.

Cut through adhesive bead all the way around.

Pull window glass outwards to remove.

G13797544Courtesy of BMW OF NORTH AMERICA, INC.

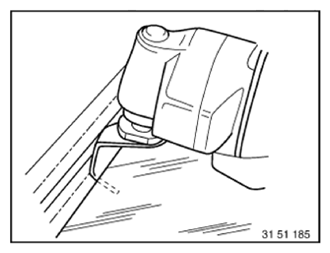

Removal from outside:

Guide knife carefully between body and window glass.

Run blade of knife parallel to glass.

Take care not to damage paintwork.

Cut through adhesive bead all the way around.

Pull window glass outwards to remove.

G13797545Courtesy of BMW OF NORTH AMERICA, INC.

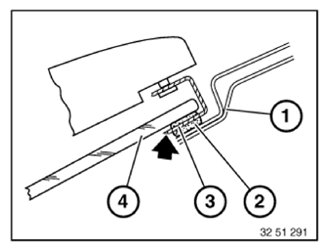

Cut through adhesive bead as closely as possible to window glass.

  1. Body aperture
  2. Adhesive bead
  3. Knife
  4. Window
G13797546Courtesy of BMW OF NORTH AMERICA, INC.
