Removing and installing/replacing windshield rubber frame (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Preliminary work needed:

IMPORTANT: The glass activator for pre-treating the windshield adhesive bead area may not come in contact with the adhesive area of the cover.
The bonding result of the cover is otherwise compromised.
Therefore, the cover must be installed prior to application of the glass activator.
Following INSTRUCTIONS  for bonding components with double-sided adhesive tape.

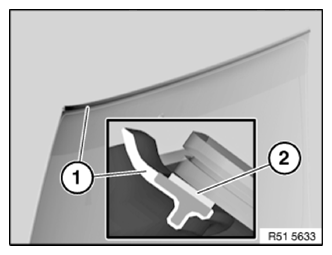

Detach cover (1).

Remove remnants of adhesive tape (2). Clean bonding surface.

Air drying time: ≥ 1 minute

IMPORTANT: Adhesive area must be dry and free from dust and grease.
Once it has been cleaned, do not touch the adhesive area with bare hands.
G13797566Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Pre-treat adhesive area with Sika-Aktivator 205.

Air drying time: ≥ 1 minute

Sika Activator 205 must not get onto adhesive area of adhesive bead.

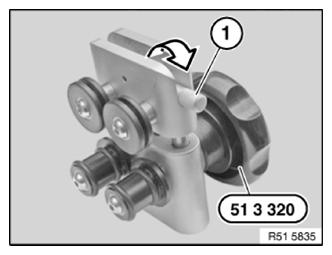

Reposition lever (1) and open special tool 51 3 320.

G13797567Courtesy of BMW OF NORTH AMERICA, INC.

Detach protective film (2) in stages from adhesive tape.

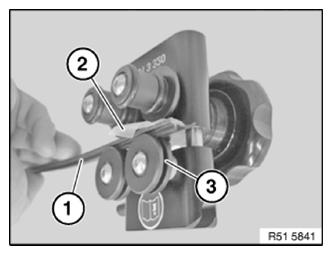

Insert cover (1) in guide pulleys (3).

G13797568Courtesy of BMW OF NORTH AMERICA, INC.

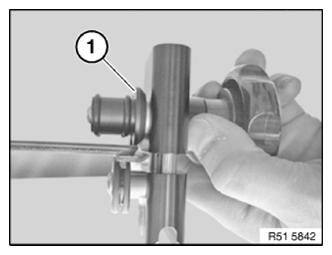

Place special tool with contact rollers (1) up against window edge.

Align cover to window outer edge.

Fit cover and visually check for perfect fit.

G13797569Courtesy of BMW OF NORTH AMERICA, INC.

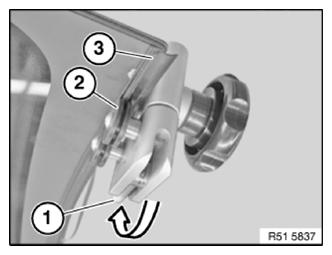

Reposition lever (1) and close special tool.

Make cover (3) is correctly seated in guide pulleys (2).

G13797570Courtesy of BMW OF NORTH AMERICA, INC.

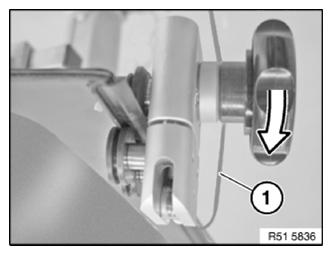

Continue to detach protective film (1) in stages from adhesive tape.

Run special tool with adjuster knob over entire upper window edge.

G13797571Courtesy of BMW OF NORTH AMERICA, INC.
