Adjusting/replacing bump stops for trunk lid (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Prerequisite: Trunk lid correctly adjusted.

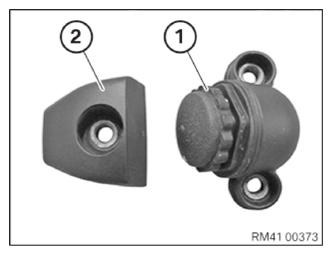

Following parts must not be damaged:

(1) Bump stop
(2) Stop

Courtesy of BMW OF NORTH AMERICA, INC.

Checking correct adjustment:

Insert a strip of paper (normal writing paper) between stop pad and stop on body.
Close trunk lid. Make sure that the paper strip remains between stop pad and stop.
The stop pad is correctly adjusted when the paper strip can be pulled out "with slight resistance".

Courtesy of BMW OF NORTH AMERICA, INC.

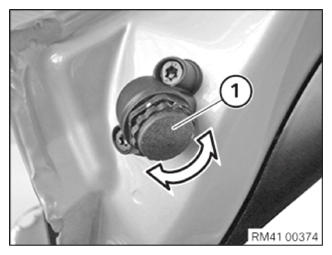

Adjustment procedures:

Screw in stop pad (1) until the paper strip can be easily pulled out.

Then unscrew the stop pad (1) again until the paper strip cannot be pulled out any more.

Screw in stop pad (1) until the paper strip offers a slight resistance when pulled out.
