Removing and installing/replacing door stop of the front left or front right door (Cooper Convertible)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work needed:
- Remove SOUND INSULATION .
- Close door window completely
Removal:

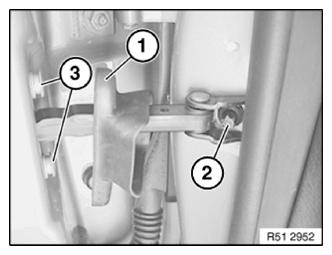

Guide gasket (1) off screws (3).
Remove screw (2).
Loosen screws (3).
Guide door stop out of door.
Installation:
Guide door stop into door.
Tighten screw (2).
Tightening torque 51 21 2AZ .
Tighten down screws (3).
Tightening torque 51 21 3AZ .
Mount gasket (1).
Required reworking:
- Install SOUND INSULATION .
