Replacing mirror glass (Cooper Convertible)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 9 317
WARNING:
Shift mirror glass with hand carefully and slowly.
If mirror glass is damaged:
Wear protective goggles and cut-proof gloves.
Injury hazard by flaking-off glass splinters.
If mirror glass is damaged:
Wear protective goggles and cut-proof gloves.
Injury hazard by flaking-off glass splinters.
IMPORTANT:
Bring vehicle exterior mirror to room temperature to prevent detents from breaking off.
Removal:
NOTE:
Secure mirror glass (1) against falling out.
Cables for the mirror heating are very short.
Press the mirror glass (1) on the vehicle side hand force to the full extent.
Cables for the mirror heating are very short.
Press the mirror glass (1) on the vehicle side hand force to the full extent.

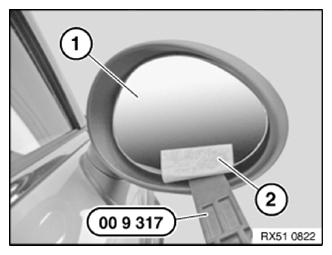

Affix mirror glass (1) with adhesive tape (2).
Unclip the mirror glass (1) with special tool 00 9 317 by rotating.
If necessary, disconnect related plug connections.
Remove the mirror glass (1).
Installation:

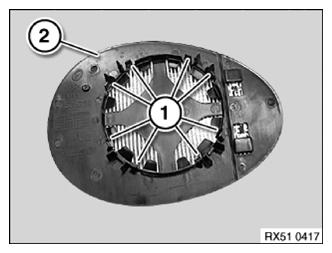

Retaining lugs (1) must not be damaged.
Fit and clip in the mirror glass (2) with the retaining lugs (1) evenly on the engine for mirror adjustment.
Ensure correct locking.
Run a functional check.
