REP-TAT-P-5112-02 Install the diffuser

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

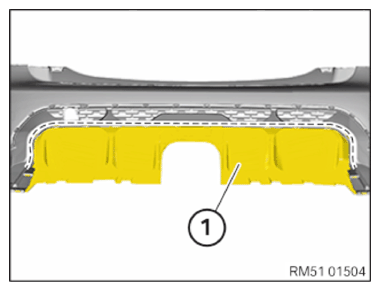

Check all the detents on diffuser (1).

Check diffuser (1) for damage and, if necessary, replace it.

Position diffuser (1) correctly and engage it into all the detents along the dotted line.
