Removing and installing/replacing mounting for fog light on front left or right (John Cooper Works Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Removal:

Disengage mounting for fog light (1) from detents and remove.

G13797197Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Detents on mounting for fog light (1) must not be damaged or missing.

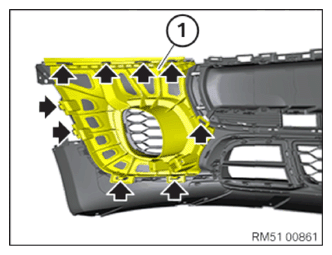

Position mounting for fog light (1) and engage in the detents.

G13797198Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
