REP-TAT-P-5111-02 Install bumper cover, front
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
- Only in vehicles with build level up to: March 2021

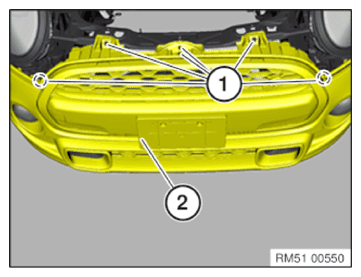

- Position the bumper cover (2) with the help of another person.
- Connect all plug connections depending on equipment specification and lock.
- Tighten down screws (1).TIGHTENING TORQUE SPECIFICATION
Bumper cover to front panel M6x20 screw Tightening torque 6 Nm - Only in vehicles with build level starting from: March 2021

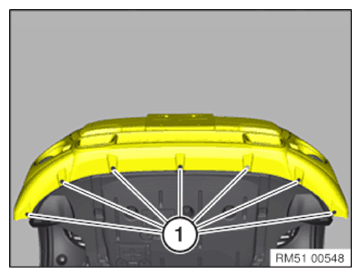

- Position the bumper cover (2) with the help of another person.
- Connect all plug connections depending on equipment specification and lock.
- Tighten down screws (1).TIGHTENING TORQUE SPECIFICATION

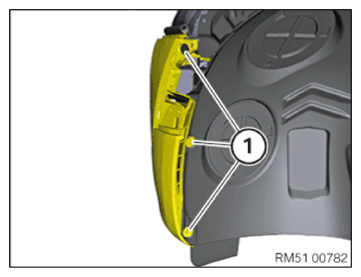

Bumper cover to front panel M6x20 screw Tightening torque 6 Nm NOTE: Perform the steps on the right and left side. - Tighten down screws (1).TIGHTENING TORQUE SPECIFICATION
Wheel arch cover screw Tightening torque 2.6 Nm Plastic nut Tightening torque 2.6 Nm - Tighten down screws (1).TIGHTENING TORQUE SPECIFICATION
Lower front bumper panel screw Tightening torque 3 Nm - Only in vehicles with build level up to:
March 2021NOTE: Perform the steps on the right and left side.

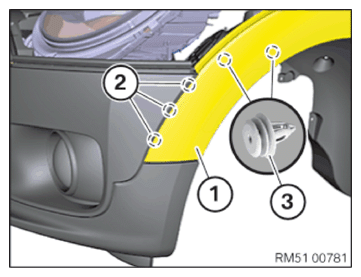

- Position wheel arch trim (1) and engage it into detents (2) and clips (3).
- Only in vehicles with build level starting from:
March 2021NOTE: Perform the steps on the right and left side.

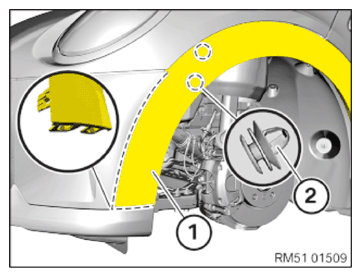

- Position wheel arch trim (1) correctly and engage it into clips (2).
- Engage wheel arch trim (1) into detents along the dotted line.
