REP-TAT-P-5111-01 Remove front bumper cover
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
- Only in vehicles with build level up to:
March 2021NOTE: Perform the steps on the right and left side.

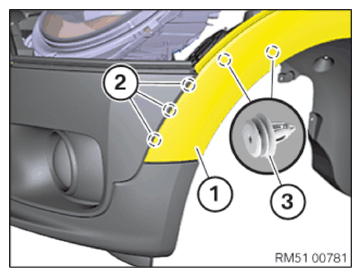

- Release wheel arch trim (1) from detents (2) and clips (3).
- Only in vehicles with build level starting from:
March 2021NOTE: Perform the steps on the right and left side.

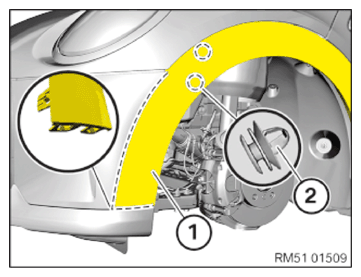

- Wheel arch trim (1) from the detents along the dotted line.
- Release wheel arch trim (1) from clips (2).

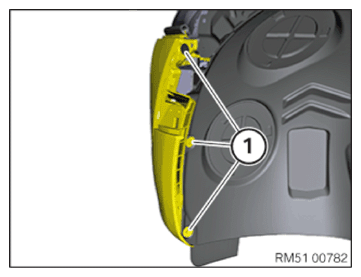

- Loosen screws (1).NOTE: Perform the steps on the right and left side.

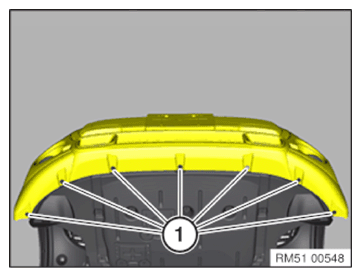

- Loosen screws (1).
- Only in vehicles with build level up to: March 2021

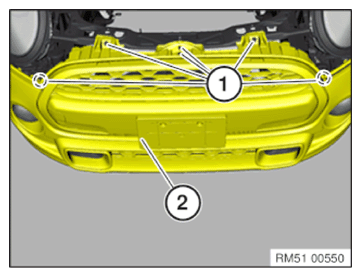

- Loosen screws (1).
- Pull the bumper cover (2) slightly forward with the help of another person.
- Unlock and disconnect all plug connections depending on equipment specification.
- Remove the bumper panel (2) to the front with the help of another person.
- Only in vehicles with build level starting from: March 2021

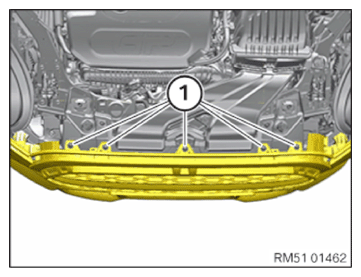

- Loosen screws (1).
- Pull the bumper cover (2) slightly forward with the help of another person.
- Unlock and disconnect all plug connections depending on equipment specification.
- Remove the bumper panel (2) to the front with the help of another person.
