Removing and installing/replacing right parking brake Bowden cable (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Read and comply with GENERAL INFORMATION .
Remove WHEEL .
Remove left and right TANK COVER .
Release the heat shield.

Release bellows on parking brake lever.

Release adjusting stand (1) for parking brake Bowden cable.

G11648203

Courtesy of BMW OF NORTH AMERICA, INC.

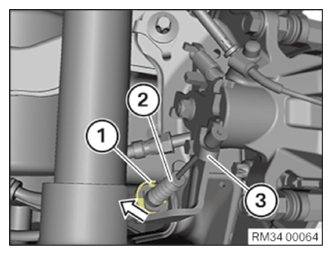

Detach retaining clip (1) in arrow direction.

Disengage parking brake Bowden cable (2) from operating lever (3) at brake caliper.

Feed out parking brake Bowden cable (2) downwards.

G13796779

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten left parking brake Bowden cable (1) in connector (2) in arrow direction and detach.

G11648206

Courtesy of BMW OF NORTH AMERICA, INC.

Detach parking brake Bowden cable from holder (1).

Press down retaining lugs (2) and remove parking brake Bowden cable (3).

G11648515

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach parking brake Bowden cable to holder (1)

Install parking brake Bowden cable (3) in holder.

Retaining lugs (2) must be fully engaged.

G11648515

Courtesy of BMW OF NORTH AMERICA, INC.

Insert left parking brake Bowden cable (1) into connector (2) in arrow direction and lock up to stop.

G11648226

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in parking brake Bowden cable (2) from below.

Mount locking clip (3).

Engage parking brake Bowden cable (2) in operating lever (1) on brake caliper.

G11648518

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Mount the left and right TANK COVER .
Fit heat shield.
Install WHEEL .
Adjust PARKING BRAKE .
