52 26 201 Removing and installing/replacing rear panel on rear seat backrest
WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Injury hazard!
The seat frame has very sharp edges that can cause injuries from cuts.
Exercise extreme caution and wear work gloves as required when carrying out any repair work in the area of the seat frame.
The seat frame has very sharp edges that can cause injuries from cuts.
Exercise extreme caution and wear work gloves as required when carrying out any repair work in the area of the seat frame.
Preliminary work needed:
- Remove BACKREST FOR REAR SEAT on left or right
Removal:
Version with lashing point:

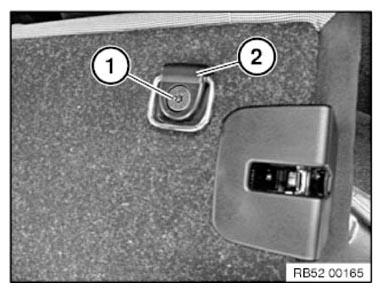

Remove screw (1).
Remove lashing point (2) from backrest.

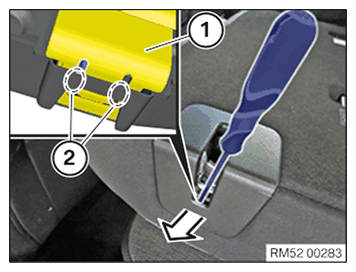

Insert screwdriver into the trim (1) and lightly push the detent downwards into area (2).
Feed trim (1) outwards.

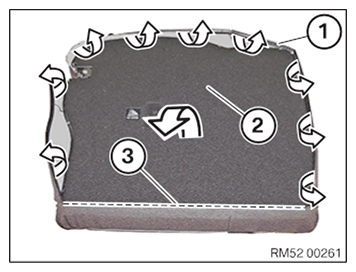

Lever out welt (1).
Pull out and remove the rear panel (2) in lower area (3).
Installation:

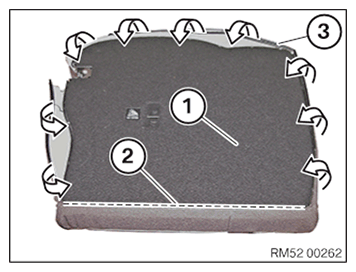

Feed in rear panel (1) in area (2).
Attach welt (3).

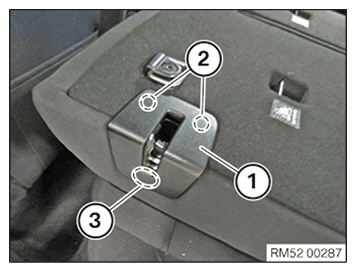

Insert trim (1) in area (2).
Clip in trim (1) in area (3).
NOTE:
Make sure the trim (1) is engaged properly.
Version with lashing point:
Install lashing point (2) in backrest.
Tighten screw (1).
Tightening torque 52 26 6AZ .
