52 26 037 Removing and installing/replacing seat frame for rear seat

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove REAR SEAT

Removal:

Detach holder (1 and 2) from all-around seat frame.

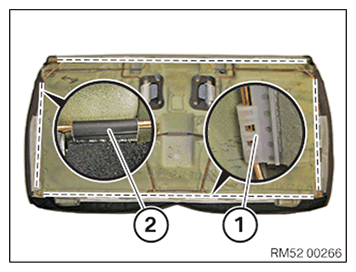

Fig 1: Detaching Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Remove seat frame (1) from seat cover with upholstery.

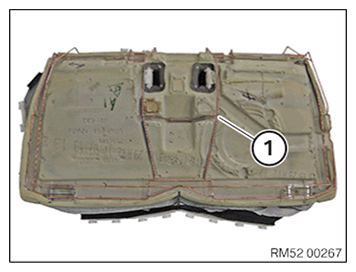

Fig 2: Removing Seat Frame From Seat Cover With Upholstery

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position seat frame (1) on seat cover with upholstery.

Fig 3: Removing Seat Frame From Seat Cover With Upholstery

Courtesy of BMW OF NORTH AMERICA, INC.

Attach holder (1 and 2) all-around on seat frame.

Fig 4: Detaching Holder

Courtesy of BMW OF NORTH AMERICA, INC.
