52 15 050 Remove or install left or right thigh support from/on the front seat (sport/manual)

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

Microencapsulated screws must be coated with Loctite if they are to be reused
Screw connection must be completed within 20 min. (start of hardening)
Microencapsulated screws must not be retightened.
Thread of nut must be cleaned beforehand in event of repeated use

Removal:

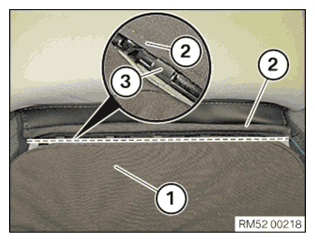

Adjust thigh support (1) towards the front.

Lever out edge stripping (2) of seat cover from holder (3).

Fig 1: Adjusting Thigh Support Towards Front

G11789051

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew the screws (1).

Detach thigh support (2) towards the front and remove.

Fig 2: Detaching Thigh Support Towards Front

G11649623

Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat heating only:

Unfasten plug connection (1) and disconnect.

Remove thigh support (2).

Fig 3: Locating Thigh Support

G11649624

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Version with seat heating only:

Position thigh support (2) and connect connector (1).

Fig 4: Locating Thigh Support

G11649624

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in thigh support (1) with guides (2) into corresponding openings on seat frame (3).

Fig 5: Feeding Thigh Support With Guides

G11649626

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Fig 6: Detaching Thigh Support Towards Front

G11649623

Courtesy of BMW OF NORTH AMERICA, INC.

Attach edge stripping (2) of seat cover in holder (3).

Fig 7: Attaching Edge Stripping Of Seat Cover

G11649622

Courtesy of BMW OF NORTH AMERICA, INC.
